Far-infrared Radiation Heater
Our company focuses on the research and development and production of various electric heating products, including various types of heaters with metal heating elements, ceramic heating elements, industrial heaters, industrial air coolers, air source heat pumps and integrated shower screen water heaters for home bathing.
Classification :
Keywords :
Convection Heater
PRODUCT DETAILS
Far-infrared radiant heaters, with their unique heating principle, are a highly efficient and energy-efficient heating option. Their core advantage lies in harnessing the penetrating properties of far-infrared radiation, directly affecting objects and people. No air preheating is required, providing instant warmth the moment you turn them on. With a heat conversion efficiency exceeding 95%, they save 30%-50% energy compared to traditional heaters.
Using directional radiation technology, they precisely concentrate heat, avoiding the spatial temperature variations associated with traditional heating systems, ensuring a uniform and stable indoor temperature. They are particularly suitable for large spaces like workshops and warehouses, minimizing energy waste.
Crafted from high-temperature, antioxidant materials, they offer a service life of over 10 years. They operate silently, without open flames, or exhaust emissions, ensuring safety while creating a quiet and comfortable environment. They are suitable for a variety of applications, including homes, offices, and farms.

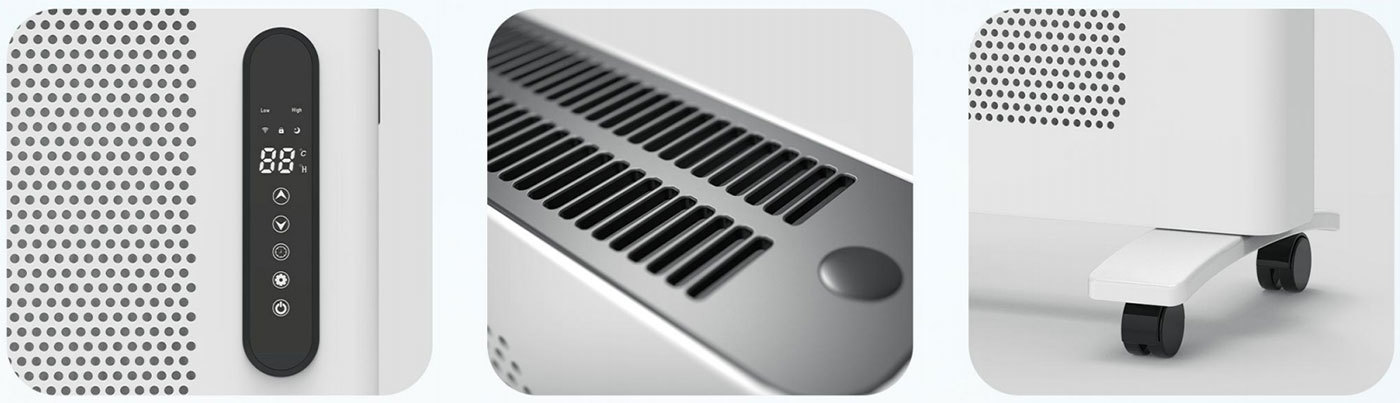

Smart models feature A temperature control system that precisely adjusts the temperature and provides a timer for on-demand heating, further reducing energy consumption. They are easy to install and can be installed in various configurations, such as wall-mounted and floor-standing, to suit different spaces. Easily upgrade your heating solution without complex modifications.
Product Name | Power | Voltage | Product Dimensions (mm) | Temperature Control Method | Recommended Area |

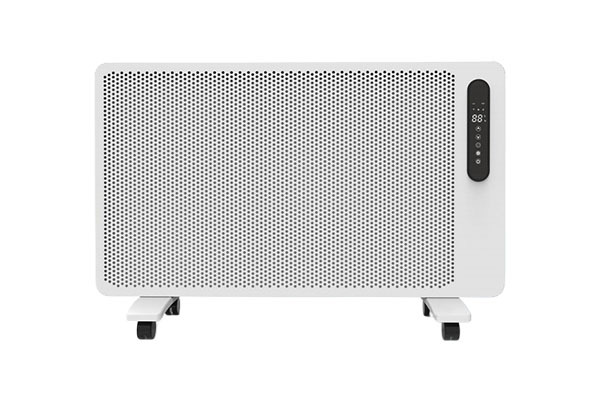

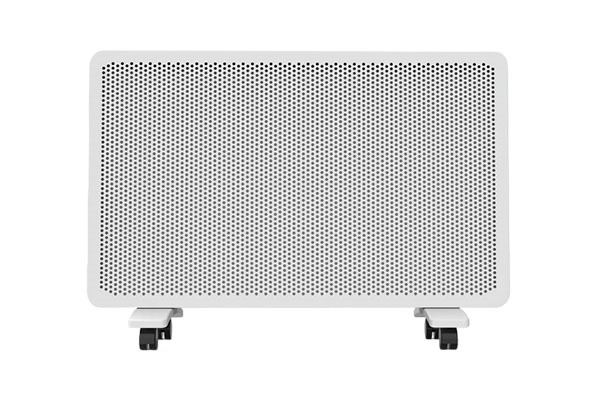

Far Infrared Radiant Heater (Mechanical Horizontal) | 1500W | 220V | 700×430×75 | Knob Switch | ≤18m² |
Far-infrared Radiant Heater (Temperature Control Horizontal) | 1500W | 220V | 700×430×75 | Smart Voice Control | ≤18m² |
Far-infrared Radiant Heater (Mechanical Horizontal) | 2000W | 220V | 950×500×75 | Knob Switch | ≤25m² |
Far-infrared Radiant Heater (Temperature Control Horizontal) | 2000W | 220V | 1100×500×80 | Smart Voice Control | ≤25m² |

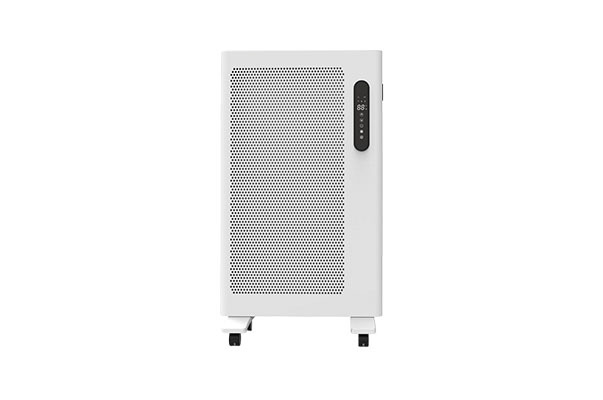

Far Infrared Radiant Heater (Temperature Control Vertical) | 1500W | 220V | 700×430×85 | Smart Voice Control | ≤18m² |
Far Infrared Radiant Heater (Temperature Control Vertical) | 2000W | 220V | 900×510×85 | Intelligent Voice | ≤25m² |
Product Advantages
High-temperature stability: Mica + graphene as the core
Efficient thermal conductivity: Mica board facilitates heat conduction and efficient power conversion
Insulation and heat resistance: Mica insulation is resistant to high temperatures
Panel variety: Plasma + UV printing technology
Application

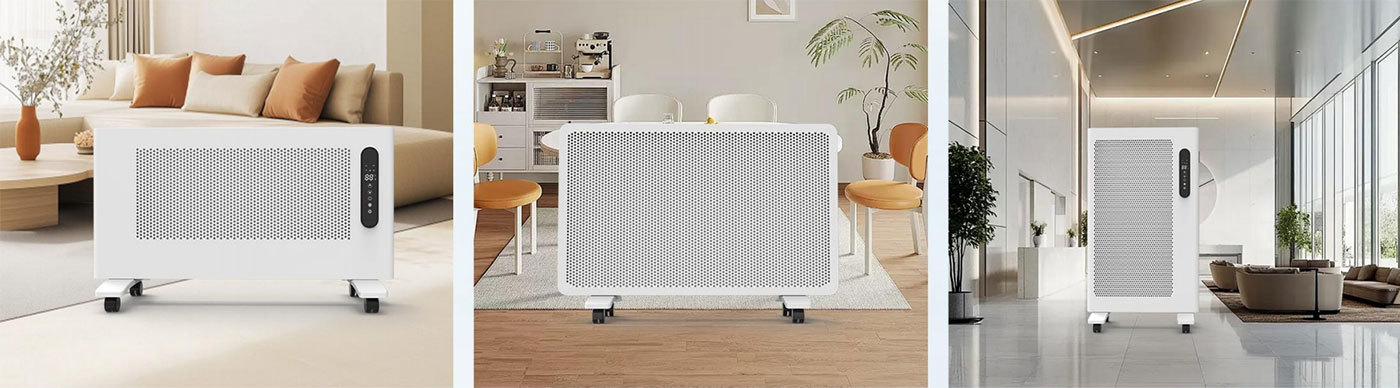

Widely used in homes (living rooms, bedrooms, bathrooms, study rooms, etc.), offices (offices, conference rooms) and businesses (shops, temporary venues) to meet heating needs in multiple scenarios
North American Product Quotes
Name | Power | Voltage | Implementation Standard | Dimensions | Packing Dimensions | Net Weight (kg) | Gross Weight (kg) | Packing Quantity | |||||||||||||
Far Infrared Radiant Heater (Mechanical Temperature Control) | 1500W | 110V ~ | FCC/UL | 70×43×8.5cm | 87×50×14cm | 4.5 | 6 | 1150 units | |||||||||||||
Far infrared radiation heater (intelligent temperature control) | 1500W | 110V ~ | FCC/UL | 75×43×8.5cm | 92×50×14cm | 4.8 | 6.2 | 1100 | |||||||||||||
Far infrared radiation heater | 1500W | 110V ~ | FCC/UL | 70×45×8.5cm | 86×52×14cm | 6 | 7.5 | 1200 units | |||||||||||||
Far-infrared high-temperature radiation graphene heater | 1500W | 110V ~ | FCC/UL | 60×60cm×3.5cm | 67×67×10cm | 5 | 6.5 | 1600 units |
European and Russian product quotations
Category | Name | Power | Voltage | Implementation standard | Dimensions | Packing dimensions | Net weight (kg) | Gross weight (kg) | Packing quantity | ||||||||||
Far infrared radiation heater (mechanical temperature control) | 1500W | 230V ~ | CE/ROSH | 70×43×8.5cm | 87×50×14cm | 4.5 | 6 | 1150 units | |||||||||||
Far infrared radiation heater (intelligent temperature control) | 1500W | 230V ~ | CE/ROSH | 75×43×8.5cm | 92×50×14cm | 4.8 | 6.2 | 1100 | |||||||||||
Far-infrared radiation heater series | Far-infrared radiation heater | 2000W | 230V ~ | CE/ROSH | 95×50×8.5cm | 112 ×58×14cm | 7.5 | 9 | 780 units | ||||||||||
Far infrared radiation heater | 2000W | 230V ~ | CE/ROSH | 110 ×50×8cm | 127 ×58×14cm | 8 | 9.6 | 720 units | |||||||||||
Far infrared radiation heater | 1500W | 230V ~ | CE/ROSH | 70×45×8.5cm | 86×52×14cm | 6 | 7.5 | 1200 units | |||||||||||
High temperature electric heating painting series | Far infrared high temperature radiation graphene heater | 1500W | 230V ~ | CE/ROSH | 60×60×3.5cm | 67×67×10cm | 5 | 6.5 | 1600 | ||||||||||
Far-infrared high-temperature radiation graphene heater | 1800W | 230V ~ | CE/ROSH | 60 ×100 ×3.5cm | 67×107 ×10cm | 7.5 | 9 | 1000 units | |||||||||||
Far-infrared high-temperature radiation graphite ene heater | 1800W | 230V ~ | CE/ROSH | 80×80×3.5cm | 87×87×10cm | 8.7 | 10.3 | 1000 units | |||||||||||
High-temperature electric heating painting series | Far-infrared high-temperature radiation graphite olefin heater | 2000W | 230V ~ | CE/ROSH | 60 ×120 ×3.5cm | 67×127 ×10cm | 10 | 11.5 | 800 units | ||||||||||
Far infrared high temperature radiation graphene heater | 2200W | 230V ~ | CE/ROSH | 80 ×120 ×3.5cm | 87×127 ×10cm | 11 | 125 | 680 units | |||||||||||
Luxury electric heating painting series | Luxury carbon crystal electric heating painting | 300W | 230V ~ | CE/ROSH | 50×60×3.5cm | 57×67×10cm | 4.5 | 6 | 1900 units | ||||||||||
Luxury carbon crystal electric heating painting | 500W | 230V ~ | CE/ROSH | 60 ×100 ×3.5cm | 67×107 ×10cm | 7 | 8.5 | 1000 units | |||||||||||
Luxury carbon crystal electric heating painting | 800W | 230V ~ | CE/ROSH | 60 ×120 ×3.5cm | 67×127 ×10cm | 8.5 | 10.5 | 800 units | |||||||||||
Luxury carbon crystal electric heating painting | 1000W | 230V ~ | CE/ROSH | 70 ×120 ×3.5cm | 77×127 ×10cm | 9.5 | 11.5 | 740 units | |||||||||||
Luxury carbon crystal electric heating painting | 1200W | 230V ~ | CE/ROSH | 80 ×120 ×3.5cm | 87×127 ×10cm | 10.5 | 12.5 | 680 units |
Application Areas
Production process

Cutting

Bending

Welding

Spray paint

Assembly

Detection

Package
Packing and delivery
Our biggest advantage is to customize and produce various types of electric heating products according to customer needs. We always adhere to the customer-centric service concept and provide customers with personalized solutions and high-quality products.

FACTORY
At present, the company has more than 50 qualification certificates related to electric heating products, more than 20 related patents, and more than 20 automated production lines. From various heating cores inside electric heating products to sheet metal, spraying and assembly of electric heating products on the outer shell of electric heating products, our factory produces them independently.
