Convection Electric Heater

Our company focuses on the research and development and production of various electric heating products, including various types of heaters with metal heating elements, ceramic heating elements, industrial heaters, industrial air coolers, air source heat pumps and integrated shower screen water heaters for home bathing.

Classification :

Keywords :

Convection Heater

PRODUCT DETAILS

This fan-type convection heater redefines the winter heating experience with its efficient, fast heating and intelligent temperature control. Its instant-heating benefits stem from its built-in high-power heating element and optimized airflow design. Cold air is drawn in through the bottom grille and instantly heated to warm air. This powerful convection circulation flows through the top outlet, raising the temperature of a 20 m² space by 5-8°C in just 10 minutes, eliminating the long waits associated with traditional heaters.

It features a precise temperature control system with a wide adjustment range of 16-30°C. Its intelligent constant temperature technology automatically shuts off to maintain warmth when the room temperature reaches the set point, eliminating energy waste and saving approximately 20% more energy than conventional heaters. An overheating protection device instantly disconnects power if the heating element temperature exceeds expectations. Its flame-retardant exterior provides multiple protections for safe use.

The design balances practicality and aesthetics, with universal wheels at the bottom for easy mobility in various locations, such as the living room, bedroom, and bathroom. Operating noise is as low as 35 decibels, just like a whisper, ensuring it won't disrupt your work, study, or sleep.

Furthermore, this heater features a timer function, allowing you to set a timer for 1-12 hours. Set the timer before bed for all-night warmth without consuming electricity. The high-density alloy heater conducts heat evenly, achieving a thermal efficiency of up to 99%, ensuring strong heat penetration and preventing localized overheating. With an IPX4 waterproof rating, it can be used in the bathroom without worry, bringing warmth to every corner of your life and easily meeting your changing heating needs.

Product name Power Voltage Product size (mm) Temperature Control Method Recommended Area

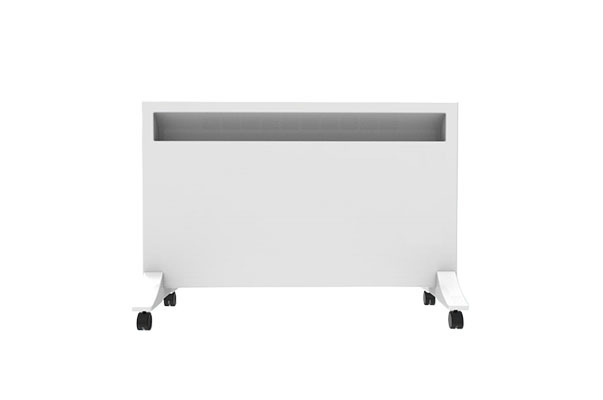

Horizontal Fan Convection (Mechanical Model) 2400W 220V 800*500*85 Rotary Switch ≤30m²

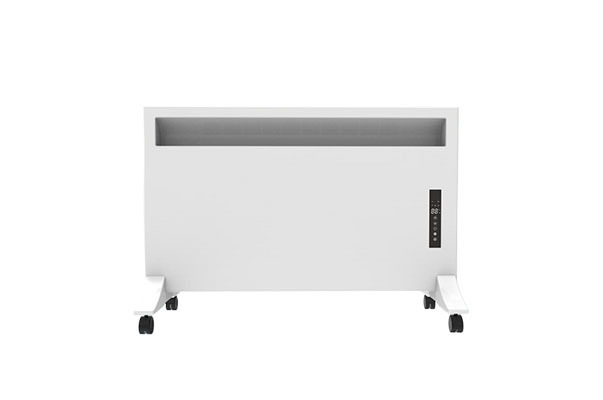

Horizontal Fan Convection (Voice Control Model) 2400W 220V 800*500*85 Smart Voice Control ≤30m²

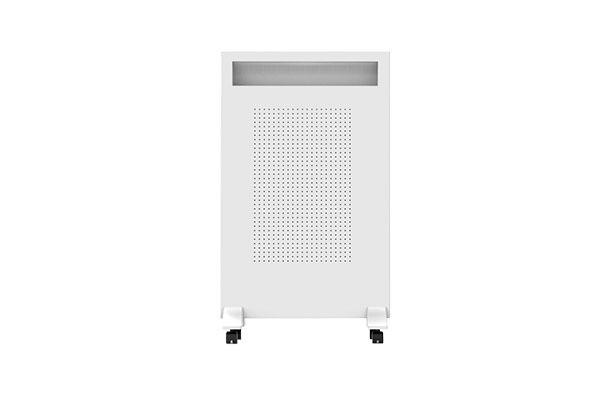

Vertical Convection Fan (Mechanical Model) 2400W 220V 850*540*85 Knob Switch ≤30m²

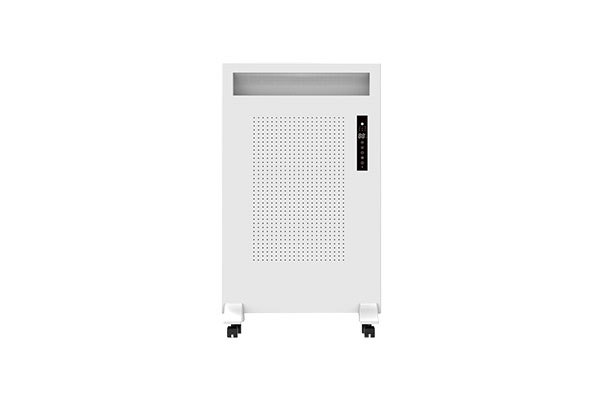

Vertical Convection Fan (Voice Control Model) 2400W 220V 850*540*85 Smart Voice Control ≤30m²

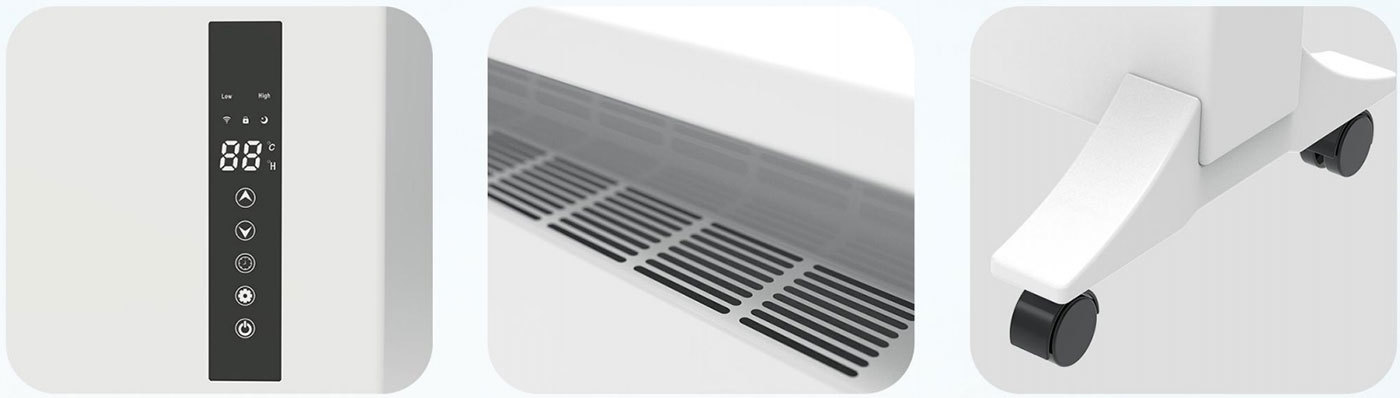

Product Advantages

Convection fan for rapid heat dissipation

Multiple safety features for worry-free operation

Multiple control modes including touch screen and remote control

Simple stand structure for dual support and mobility

Application

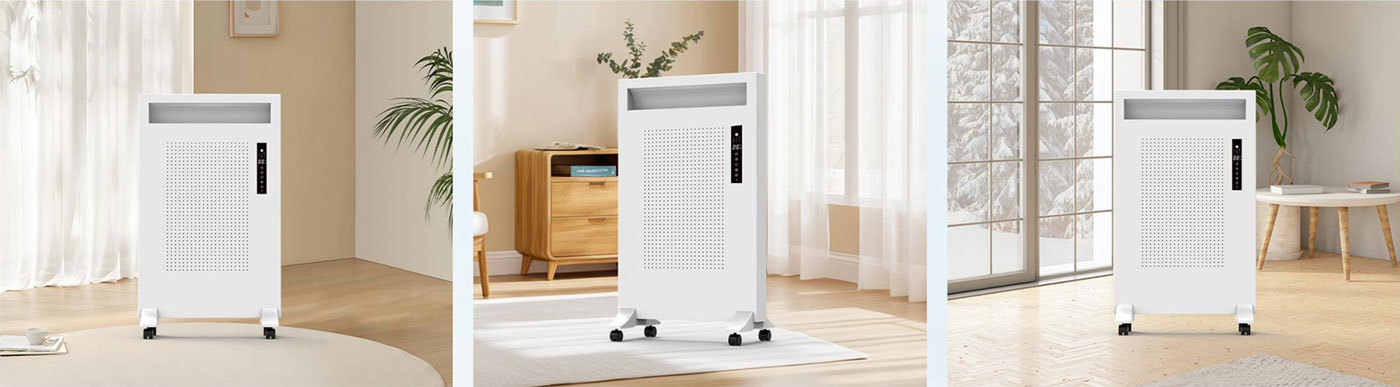

Widely used in homes (living rooms, bedrooms, bathrooms, study rooms, etc.), offices (offices, conference rooms) and businesses (shops, temporary venues) to meet heating needs in multiple scenarios

North American Product Quotes

Name Power Voltage Implementation Standard Dimensions Packing Dimensions Net Weight (kg) Gross Weight (kg) Packing Quantity
Far Infrared Radiant Heater (Mechanical Temperature Control) 1500W 110V ~ FCC/UL 70×43×8.5cm 87×50×14cm 4.5 6 1150 units
Far infrared radiation heater (intelligent temperature control) 1500W 110V ~ FCC/UL 75×43×8.5cm 92×50×14cm 4.8 6.2 1100
Far infrared radiation heater 1500W 110V ~ FCC/UL 70×45×8.5cm 86×52×14cm 6 7.5 1200 units
Far-infrared high-temperature radiation graphene heater 1500W 110V ~ FCC/UL 60×60cm×3.5cm 67×67×10cm 5 6.5 1600 units

European and Russian product quotations

Category Name Power Voltage Implementation standard Dimensions Packing dimensions Net weight (kg) Gross weight (kg) Packing quantity
  Far infrared radiation heater (mechanical temperature control) 1500W 230V ~ CE/ROSH 70×43×8.5cm 87×50×14cm 4.5 6 1150 units
Far infrared radiation heater (intelligent temperature control) 1500W 230V ~ CE/ROSH 75×43×8.5cm 92×50×14cm 4.8 6.2 1100
Far-infrared radiation heater series Far-infrared radiation heater 2000W 230V ~ CE/ROSH 95×50×8.5cm 112 ×58×14cm 7.5 9 780 units
Far infrared radiation heater 2000W 230V ~ CE/ROSH 110 ×50×8cm 127 ×58×14cm 8 9.6 720 units
Far infrared radiation heater 1500W 230V ~ CE/ROSH 70×45×8.5cm 86×52×14cm 6 7.5 1200 units
High temperature electric heating painting series Far infrared high temperature radiation graphene heater 1500W 230V ~ CE/ROSH 60×60×3.5cm 67×67×10cm 5 6.5 1600
Far-infrared high-temperature radiation graphene heater 1800W 230V ~ CE/ROSH 60 ×100 ×3.5cm 67×107 ×10cm 7.5 9 1000 units
Far-infrared high-temperature radiation graphite ene heater 1800W 230V ~ CE/ROSH 80×80×3.5cm 87×87×10cm 8.7 10.3 1000 units
High-temperature electric heating painting series Far-infrared high-temperature radiation graphite olefin heater 2000W 230V ~ CE/ROSH 60 ×120 ×3.5cm 67×127 ×10cm 10 11.5 800 units
Far infrared high temperature radiation graphene heater 2200W 230V ~ CE/ROSH 80 ×120 ×3.5cm 87×127 ×10cm 11 125 680 units
Luxury electric heating painting series Luxury carbon crystal electric heating painting 300W 230V ~ CE/ROSH 50×60×3.5cm 57×67×10cm 4.5 6 1900 units
Luxury carbon crystal electric heating painting 500W 230V ~ CE/ROSH 60 ×100 ×3.5cm 67×107 ×10cm 7 8.5 1000 units
Luxury carbon crystal electric heating painting 800W 230V ~ CE/ROSH 60 ×120 ×3.5cm 67×127 ×10cm 8.5 10.5 800 units
  Luxury carbon crystal electric heating painting 1000W 230V ~ CE/ROSH 70 ×120 ×3.5cm 77×127 ×10cm 9.5 11.5 740 units
Luxury carbon crystal electric heating painting 1200W 230V ~ CE/ROSH 80 ×120 ×3.5cm 87×127 ×10cm 10.5 12.5 680 units

Application Areas



Production process

Cutting

Cutting

Bending

Bending

Welding

Welding

Spray paint

Spray paint

Assembly

Assembly

Detection

Detection

Package

Package

Packing and delivery

Our biggest advantage is to customize and produce various types of electric heating products according to customer needs. We always adhere to the customer-centric service concept and provide customers with personalized solutions and high-quality products.

图片名称

FACTORY

At present, the company has more than 50 qualification certificates related to electric heating products, more than 20 related patents, and more than 20 automated production lines. From various heating cores inside electric heating products to sheet metal, spraying and assembly of electric heating products on the outer shell of electric heating products, our factory produces them independently.

图片名称

FAQ

How much will my electricity bill increase? 2025-06-09 16:07:55.011
Infrared heating panels are highly energy-efficient and consume 50%-70% less electricity compared to traditional heaters. For a 500W panel used 8 hours a day, the estimated cost is less than $0.50 per day (depending on local electricity rates). Many customers report noticeable savings on their energy bills.
Can the product be customized? 2025-06-09 16:07:43.369
Yes, we provide OEM and ODM services, including custom branding, packaging, and specific product adjustments.
How is the product shipped for bulk orders? 2025-06-09 16:07:31.745
Bulk orders are shipped securely via sea or air freight. We ensure safe packaging to prevent damage during transportation. Delivery times and shipping costs vary by location; contact us for a detailed quote.
Do you provide exclusive dealership or distributorship opportunities? 2025-06-09 16:07:15.161
Yes, we welcome partnerships with distributors and agents worldwide. We offer exclusive territorial agreements, marketing support, and technical training for our partners.
What spaces are these panels suitable for? 2025-06-09 16:07:01.441
Perfect for homes, including bathrooms, living rooms, bedrooms, and kitchens. Ideal for offices, meeting rooms, and yoga studios. Great for outdoor spaces like patios and balconies (weather-resistant models). Specialized versions available for animal care, reptile enclosures, and garages.
How to install the infrared heating panels? 2025-06-09 16:06:45.046
The panels are easy to install. They can be mounted on walls or ceilings using the included brackets and screws. A step-by-step installation guide is provided, and we also offer technical support if needed.
